SF250800A

Name: SF250800A - Filtronetics
SKU: SF250800A
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

SF250800A

Frequency

250 MHz

Insertion Loss

19.0 dB Max

Pass Bandwidth

82 MHz / 3 dB Max

Stop Bandwidth

140 MHz / 40 dB Min

Ripple

1.5 dB Max in 82 MHz Passband

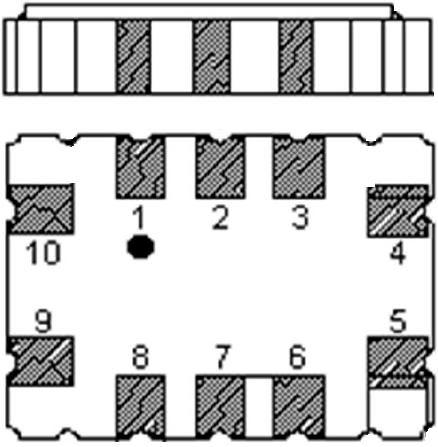

Case

7.0 x 5.0 x 1.85 mm (SMD)

Operating Temperature

-20 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
