FNP-1549

Name: FNP-1549 - Filtronetics
SKU: FNP-1549
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FNP-1549

Frequency

10000 MHz

Insertion Loss

1.3 dB Max

Pass Bandwidth

±500 MHz / 3.0 dB Max

Stop Bandwidth

8100MHz / 80 dB Min // 11200MHz / 30 dB Min

Ripple

0.5 dB Max

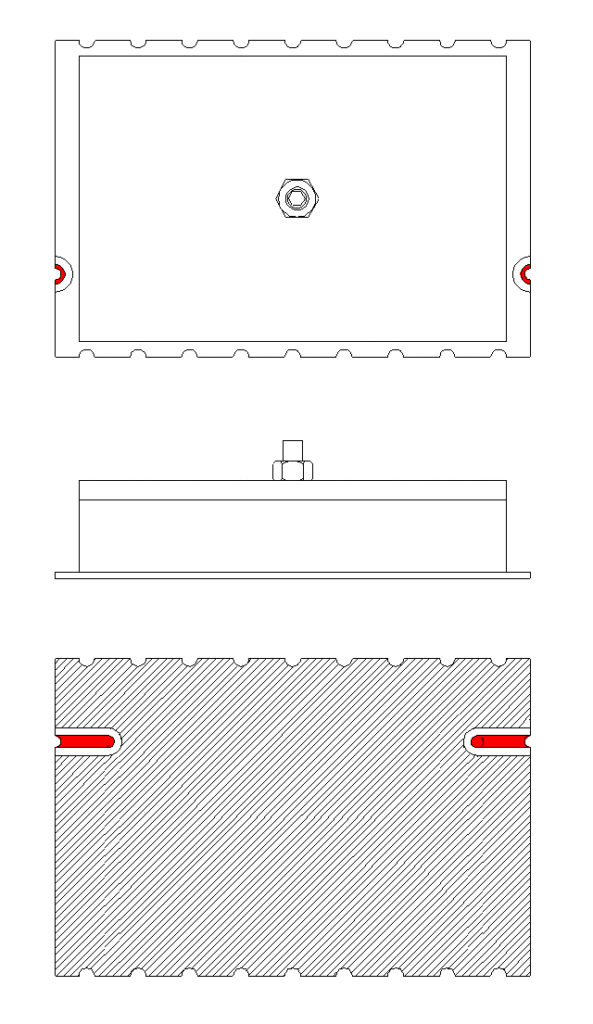

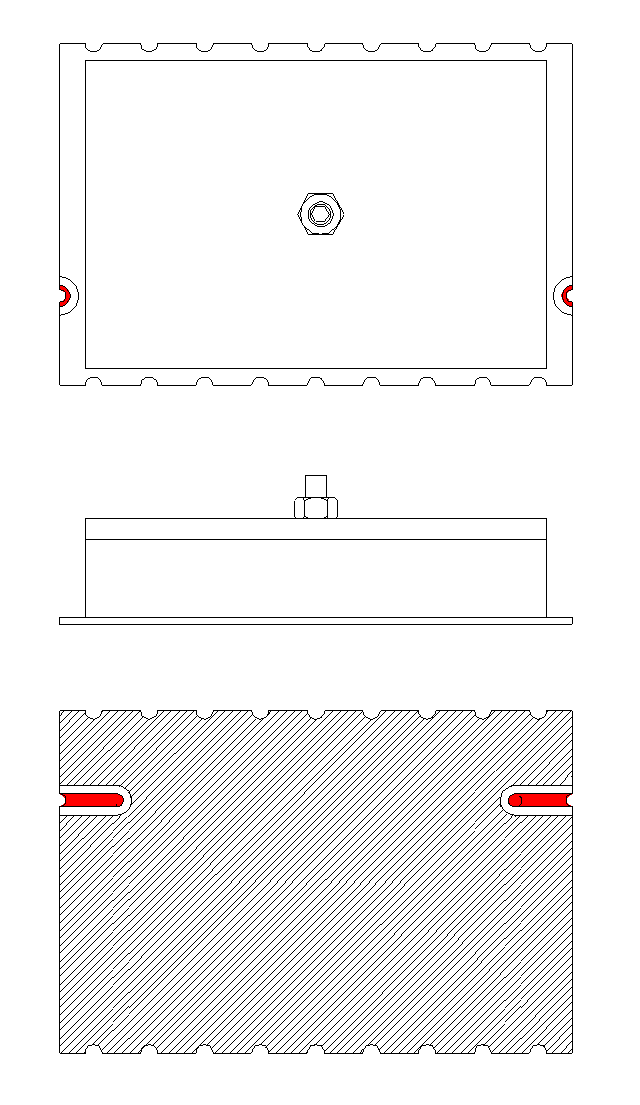

Case

60 x 40 x 17.3 mm (SMD)

Operating Temperature

-40 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
