FNP-1532

Name: FNP-1532 - Filtronetics
SKU: FNP-1532
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

FNP-1532

Frequency

3000 MHz

Insertion Loss

1.5 dB Max

Pass Bandwidth

±100 MHz / 3.0 dB Max

Stop Bandwidth

2850MHz / 70 dB Min // 3150 MHz / 70 dB Min

Ripple

0.8 dB Max

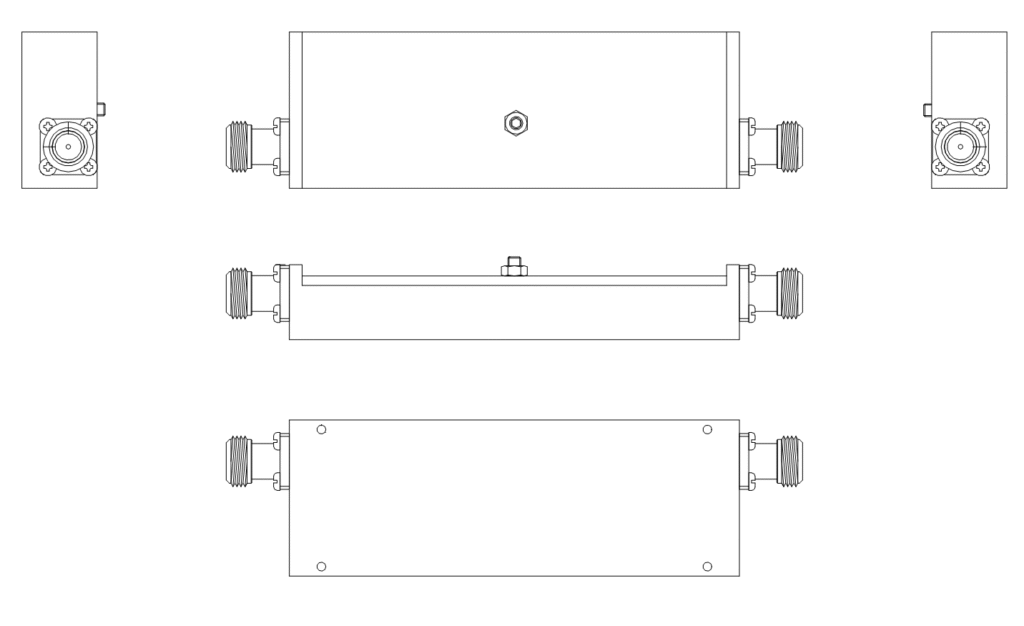

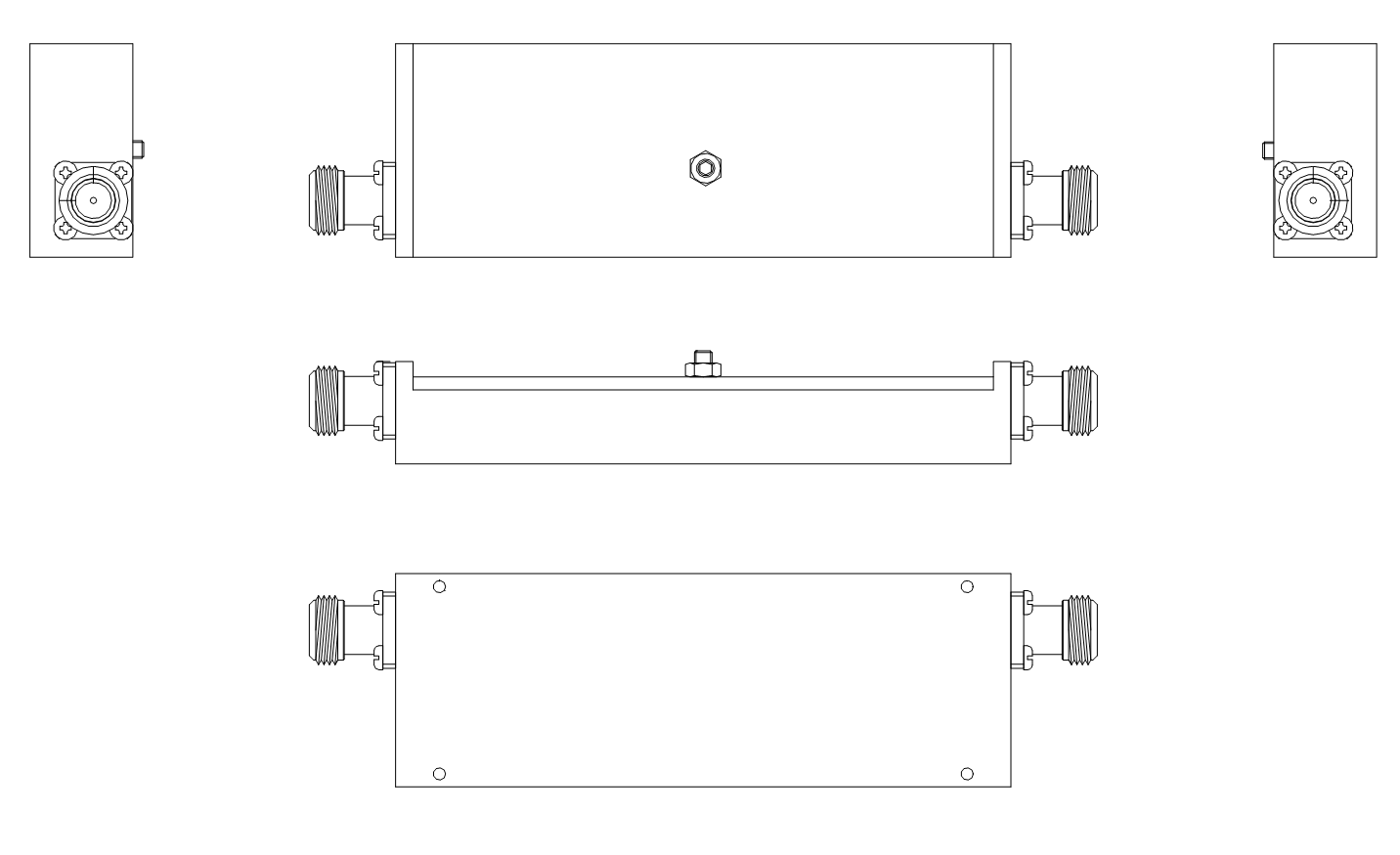

Case

140.5 x 49.0 x 26.0 mm (N connectors)

Operating Temperature

-30 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
