FNP-1488

Name: FNP-1488 - Filtronetics
SKU: FNP-1488
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

FNP-1488

Frequency

410.5 MHz

Insertion Loss

10.0 dB Max at Fc

Pass Bandwidth

1.0 MHz / 3.0 dB Max

Stop Bandwidth

408.5MHz / 40 dB Min // 412.5MHz / 40 dB Min

Ripple

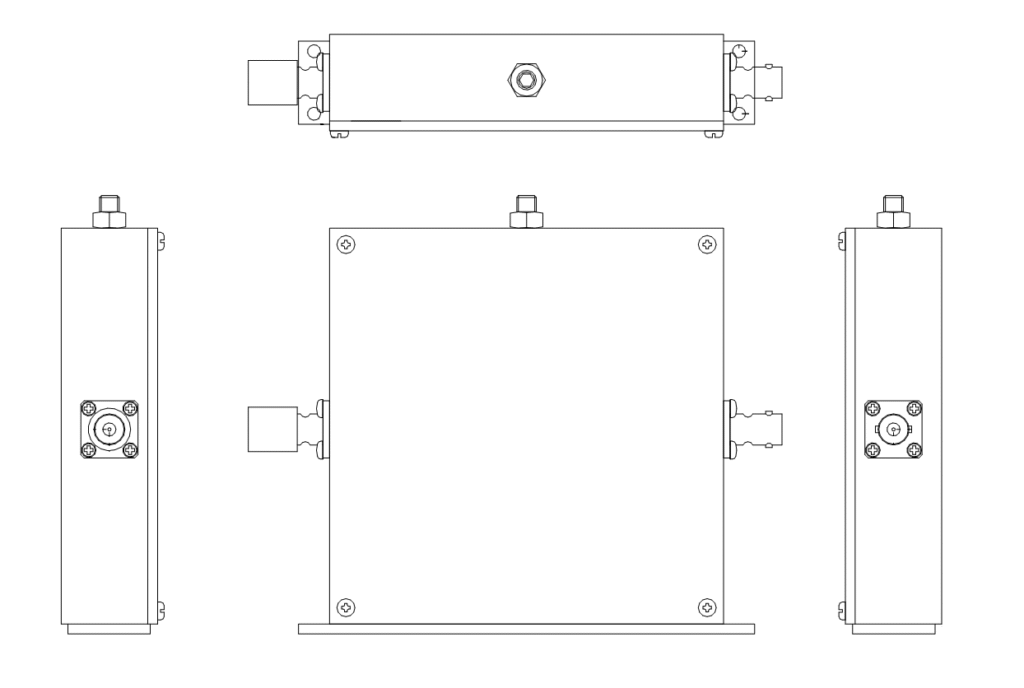

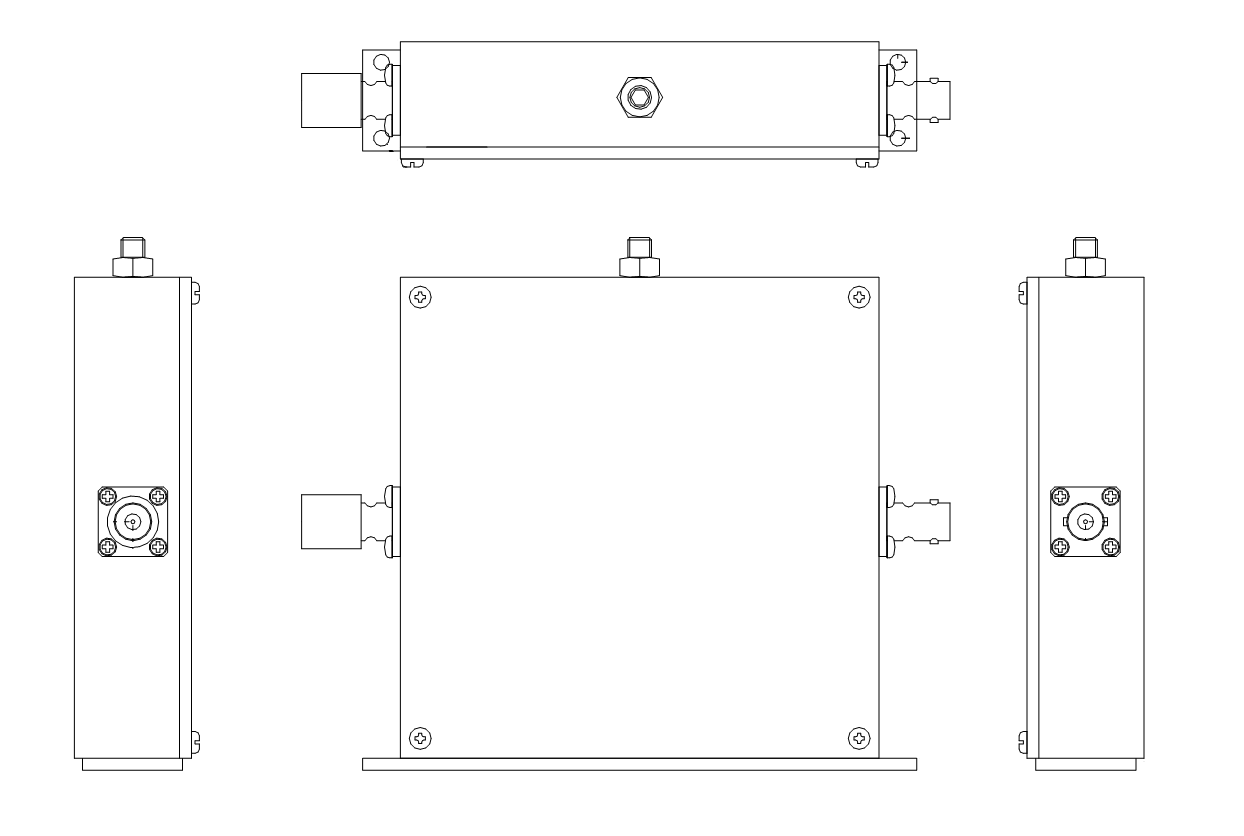

Case

139.6 x 124.0 x 31.5 mm (BNC)

Operating Temperature

-30 to +70°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
