FNP-1454

Name: FNP-1454 - Filtronetics
SKU: FNP-1454
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FNP-1454

Frequency

2249 MHz

Insertion Loss

2200~2292 MHz / 0.8 dB Max // 2292~2298 MHz / 1.2 dB Max

Pass Bandwidth

2200 to 2298 MHz

Stop Bandwidth

2505 MHz / 30 dB Min notch // 2025~2120 MHz / 80 dB Min // >2380 MHz / 80 dB Min

Ripple

0.6 dB Max (in Pass band)

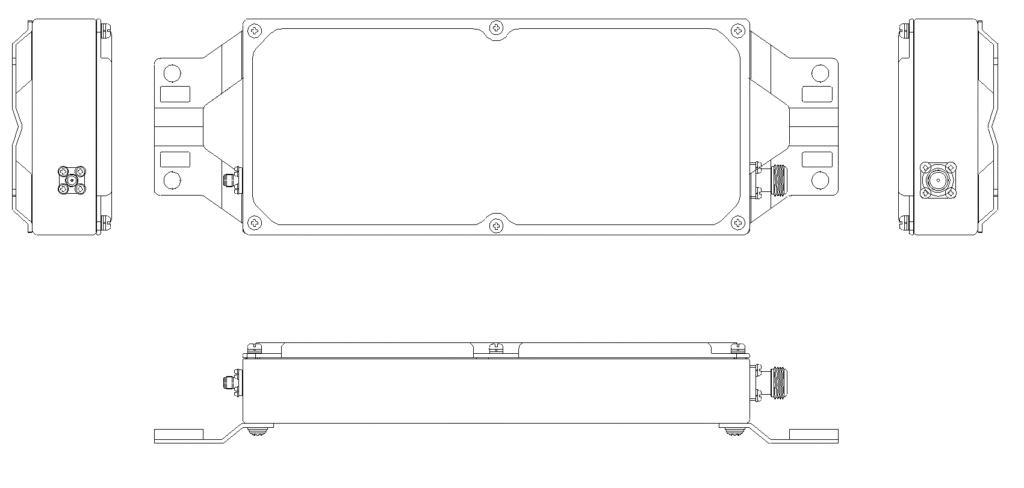

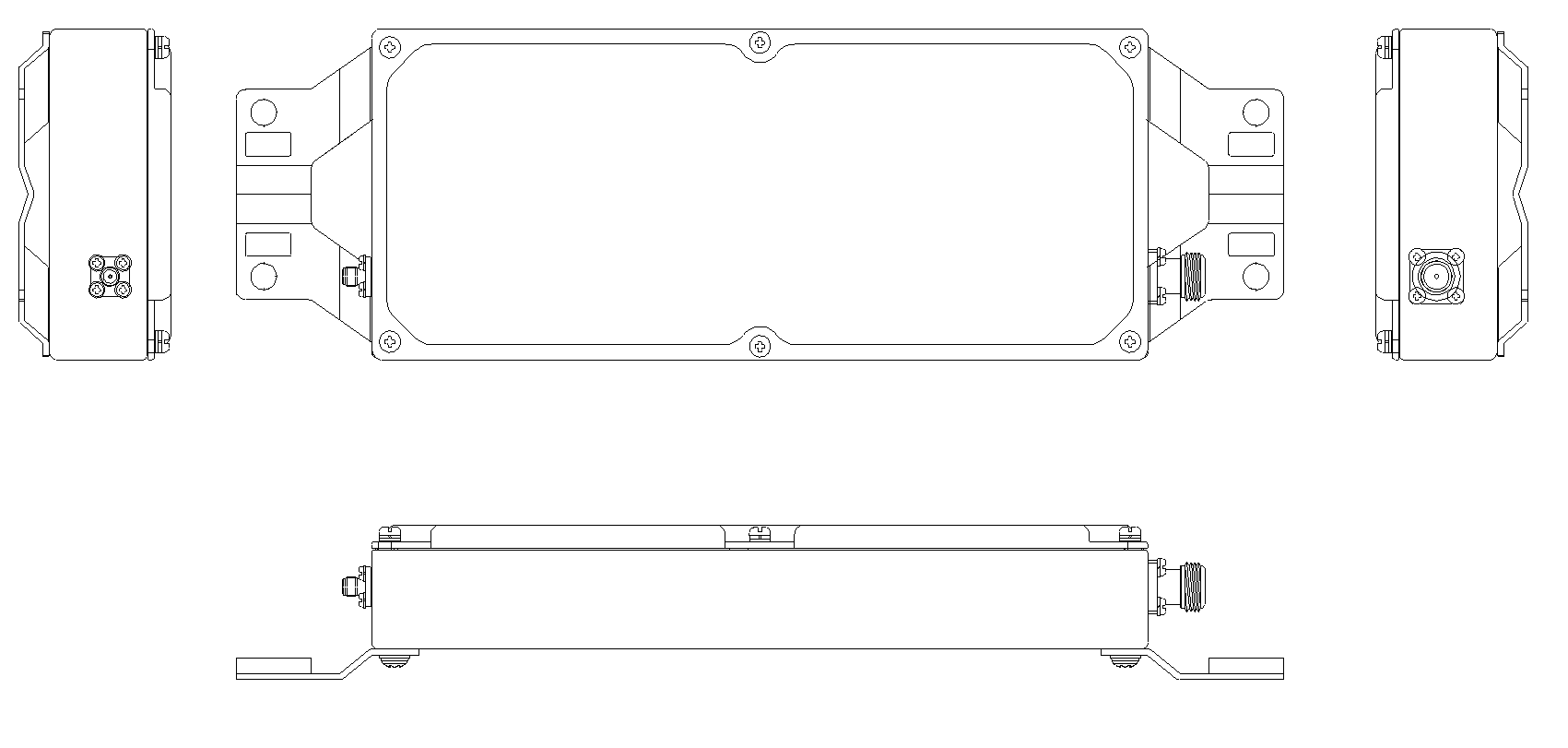

Case

344.0 x 107.0 x 50.0 mm

Operating Temperature

0 to +55°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
