FN-4671W

Name: FN-4671W - Filtronetics
SKU: FN-4671W
Availability: InStock

Bandpass Filters - Filters

Capabilities

Model Number:

FN-4671W

Frequency

141.0 MHz

Insertion Loss

1.5 dB Max

Pass Bandwidth

66 MHz / 3 dB Max

Stop Bandwidth

88 MHz / 40 dB Min // 194 MHz / 35 dB Min // 225 MHz / 40 dB Min

Ripple

1.0 dB Max in Pass Band

Case

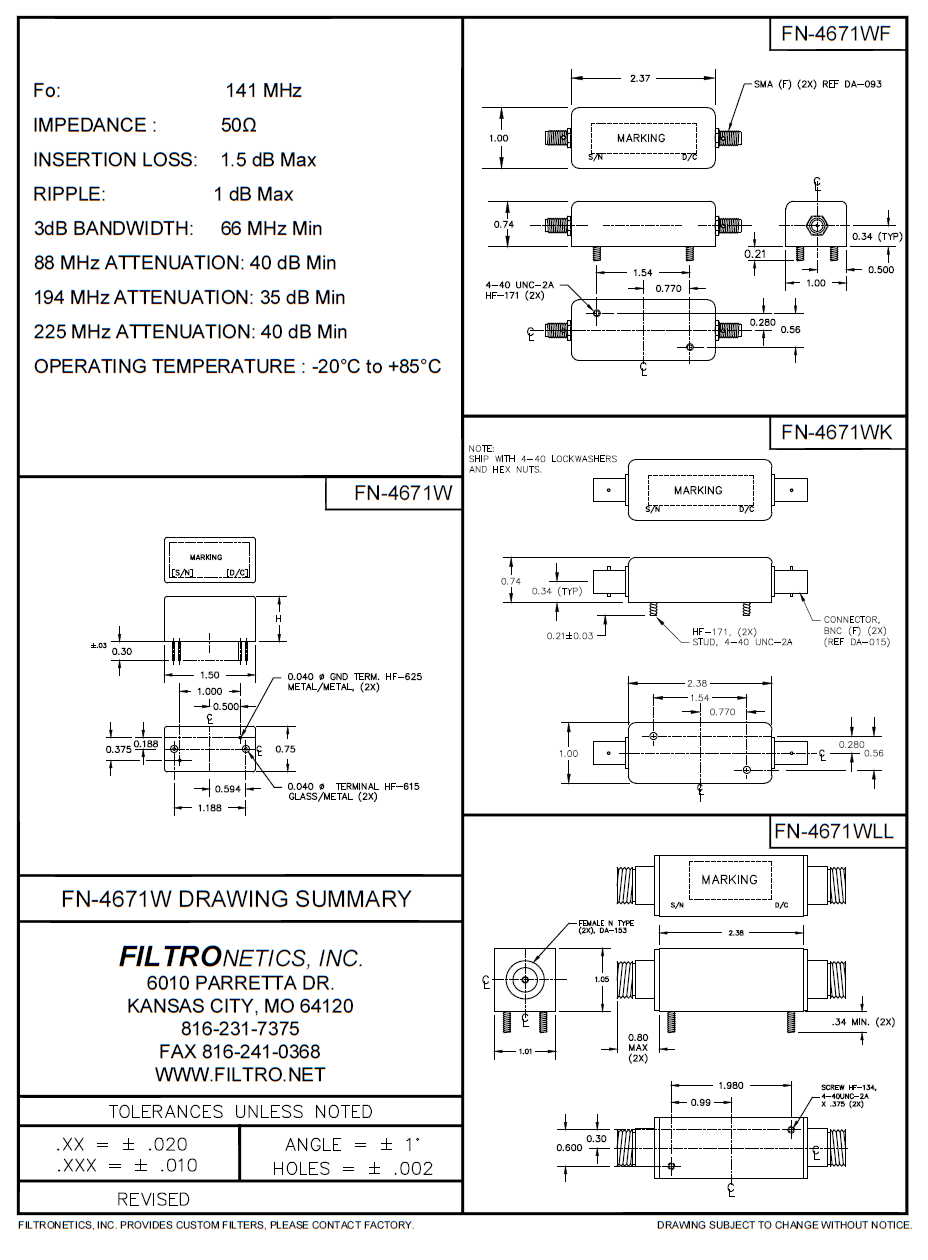

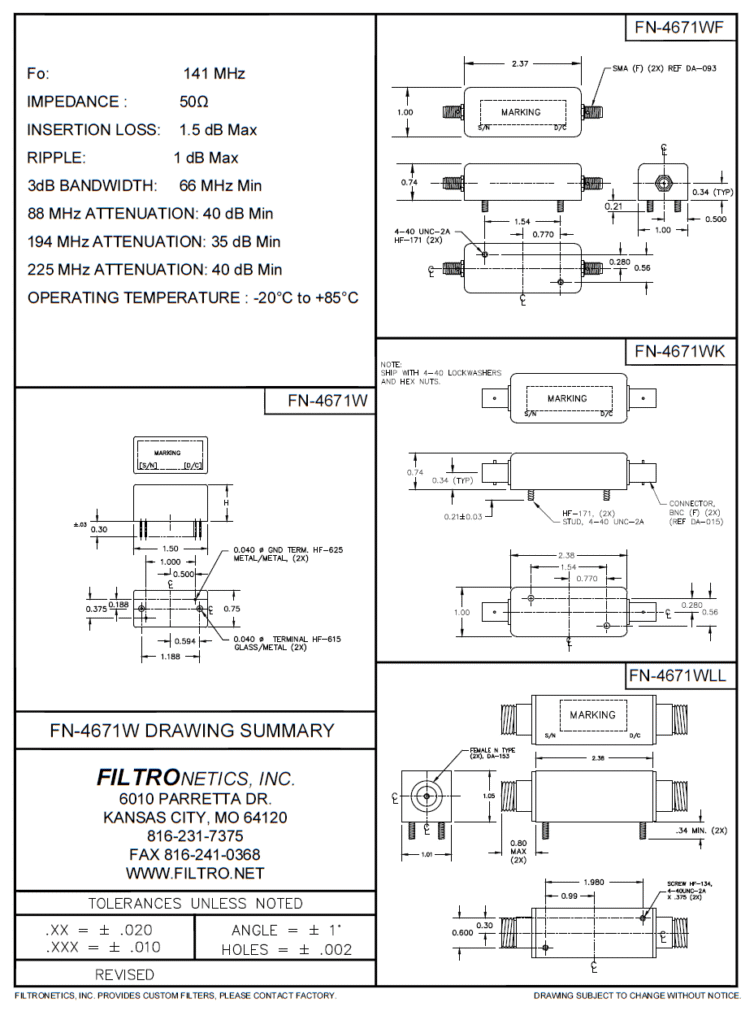

Various (download the pdf sheet for details)

Operating Temperature

-20 to +85°C

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
