CFM-094403210

Name: CFM-094403210 - Filtronetics
SKU: CFM-094403210
Availability: InStock

Bandpass Filters - Filters

RoHS Compliant

Capabilities

Model Number:

CFM-094403210

Frequency

944 MHz

Insertion Loss

3.3 dB Max

Pass Bandwidth

928~960 MHz / 3 dB

Stop Bandwidth

58 MHz / 70 dB Min

Ripple

2.8 dB Max

Case

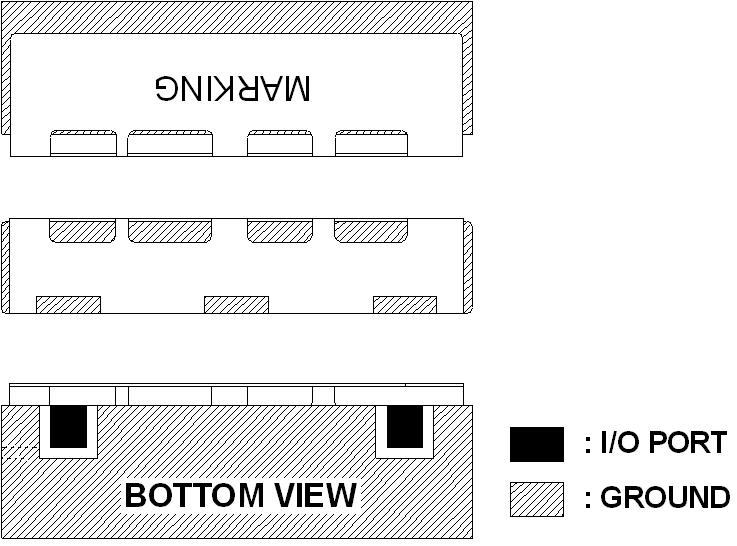

40.5 x 13 x 8 mm (SMD)

Operating Temperature

-40 to +85?

Poles

Impedance

50 Ohms

Cutoff Frequency

Frequency Range

High Center Frequency

High Pass Bandwidth

Load

Low Center Frequency

Low Pass Bandwidth

Rise/Fall Time

Size

Type of filter

Bandpass

Logic

Sort

Type
